Plaster Downlight Single Square Recessed SD0022
(image for) Plaster Downlight Single Square Recessed SD0022
(image for) Plaster Downlight Single Square Recessed SD0022
(image for) Plaster Downlight Single Square Recessed SD0022
(image for) Plaster Downlight Single Square Recessed SD0022
(image for) Plaster Downlight Single Square Recessed SD0022
(image for) Plaster Downlight Single Square Recessed SD0022
(image for) Plaster Downlight Single Square Recessed SD0022
(image for) Plaster Downlight Single Square Recessed SD0022
  • In Stock:  479

Plaster Downlight Single Square Recessed SD0022

£14.32
The Plaster Downlight Single Square Recessed SD0022 is a single square plaster-in fitting for one GU10 lamp. The lamp can be tilted to direct the beam. Adjustable metal extenders sit behind the plasterboard and accommodate different board thicknesses, helping the plaster skim finish level with the...
Qty Discounts Off Price
1-4
£14.32
5-9
£13.60
10-24
£13.32
25-49
£13.17
50+
£12.89
Add to Cart:
Description

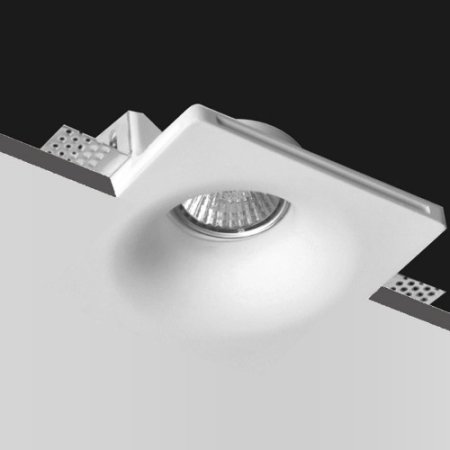

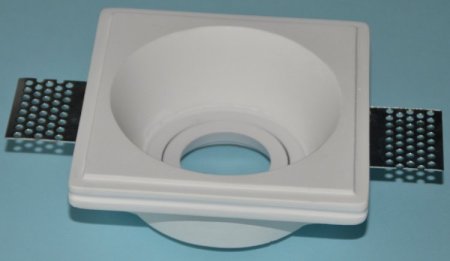

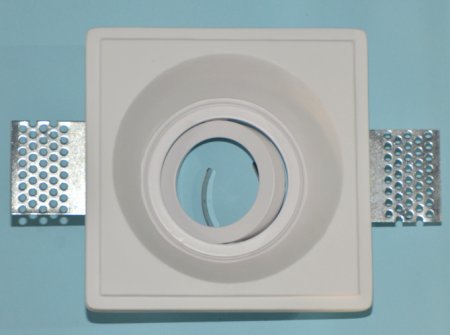

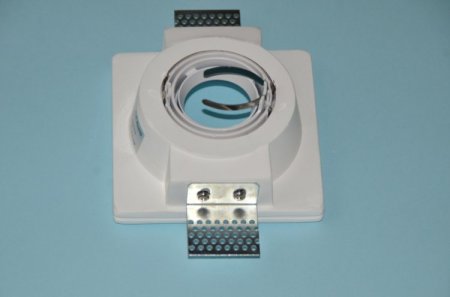

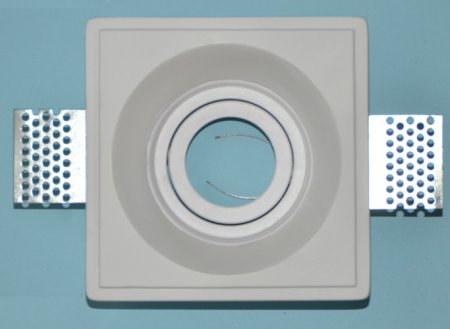

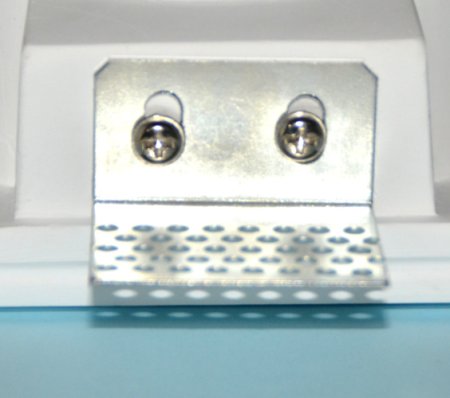

The Plaster Downlight Single Square Recessed SD0022 is a single square plaster-in fitting for one GU10 lamp. The lamp can be tilted to direct the beam. Adjustable metal extenders sit behind the plasterboard and accommodate different board thicknesses, helping the plaster skim finish level with the fitting.

Dimensions and cut-out

  • Fitting size at the plaster finish: 110 x 110mm
  • Ceiling cut-out: 120 x 120mm
  • Lamp face: 35mm behind the fitting surface

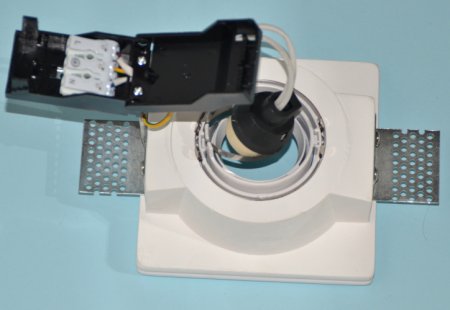

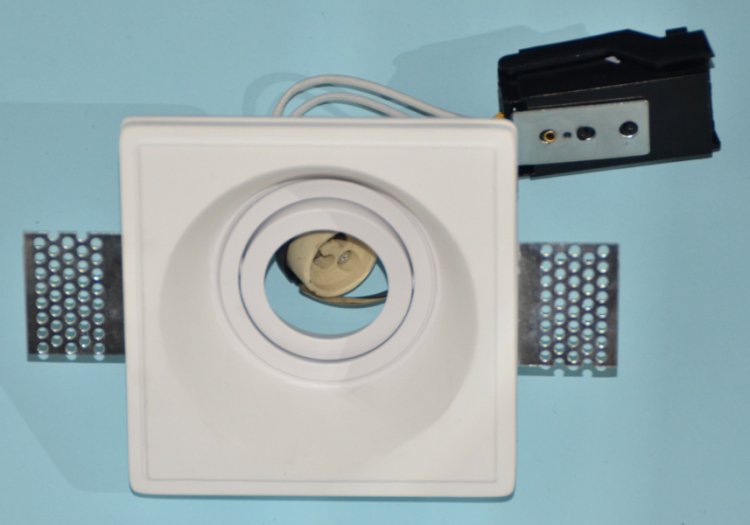

The listing specifies a GU10 lamp holder and fast-fix connector. It does not confirm that a bulb is supplied, so check the product details if you need a lamp included with the fitting.

Choose a compatible GU10 lamp

Select a GU10 lamp for the brightness, beam angle and colour temperature you need. MR11 lamps use a different cap and will not fit. If you want dimming, check that the specific GU10 LED lamp and dimmer are compatible. The fitting's tilt adjustment changes beam direction; it does not make a non-dimmable lamp dimmable.

Plan the ceiling installation

Check the current product instructions, 120 x 120mm cut-out, available ceiling void and plasterboard thickness before marking or cutting. Coordinate the fitting with the electrician and plasterer so the cut-out and plaster skim suit this model. Electrical connection should be completed by a qualified electrician.

Fire performance and bathroom use

The current listing refers to a 150mm fire hood where fire protection is required. Confirm that the fitting, hood, ceiling construction and installation method are suitable together for the project's fire-resistance requirements; a hood on its own does not establish a fire rating. The listing does not state an IP rating, so check the exact specification and location requirements before considering this fitting for a bathroom.

Square plaster downlight FAQs

What size ceiling cut-out does the SD0022 need?

The listing specifies a 120 x 120mm cut-out. Confirm the current instructions and measure the actual fitting before cutting.

Does this square recessed downlight use GU10 or MR11?

This model takes one GU10 lamp. It does not take an MR11 lamp.
