Product 1/6

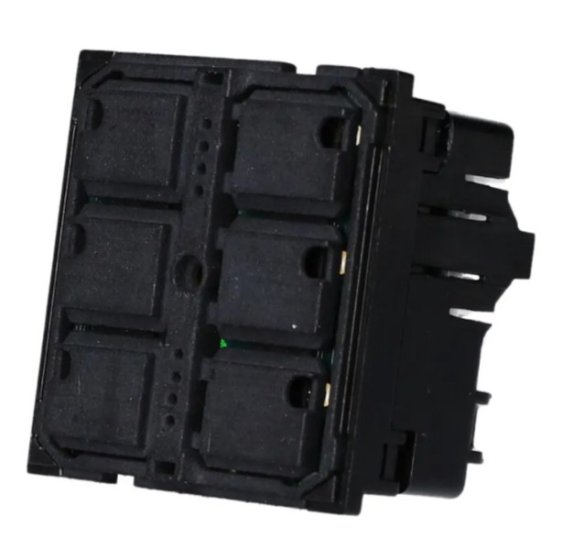

The WK EOS 6 is a wired control module designed for projects where a fixed, hard-wired lighting control solution is preferred. It forms part of the EOS range and connects directly into the Rakom wired CAT5 network, making it suitable for structured installations where reliability and long-term consistency are key priorities.
This wired approach suits larger properties, commercial buildings, and projects where lighting control is planned at an early stage. Once installed, the module becomes part of the wider Rako system, giving dependable performance across multiple rooms or zones without relying on wireless communication.
The WK EOS 6 is intended to be installed at first fix stage, which allows cabling to be planned and run before walls are finished. This makes it a strong choice for new builds and full refurbishments where lighting control is designed into the project from the outset.
By installing the control module early, the system is protected during later building works and final fitting becomes straightforward. Once the wall plate is fitted, the control panel sits flush and ready for configuration without the need for further wiring changes.
Each input on the WK EOS 6 control module is fully customisable. Buttons can be programmed to activate lighting scenes, control individual channels, or operate across separate Rako rooms. This allows lighting behaviour to be tailored precisely to how each space is used.
The press and hold function adds another layer of control. A short press and a longer hold can trigger different actions, giving users more flexibility without adding extra buttons or wall plates.
Every button on the WK EOS 6 includes a blue LED indicator, providing clear visual feedback when a command is active. This makes it easy to see the current state of the lighting, especially in darker environments or commercial spaces.
Back lit buttons also help the control panel remain easy to locate and operate at night. This is particularly useful in hotels, shared buildings, or larger homes where lighting control needs to be clear at a glance.

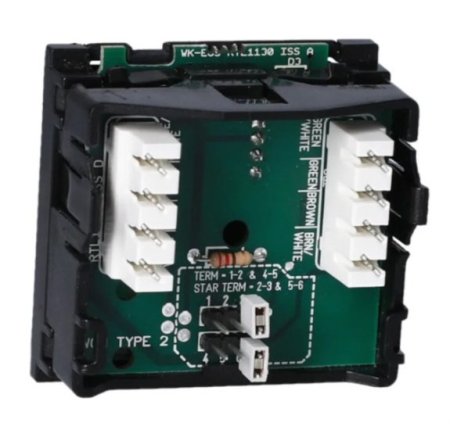

The control module connects to the Rakom wired network using a removable 8 way Krone punch down module. This provides a secure and tidy connection method, supporting stable communication across the system.
A wired connection is often preferred where consistency and long-term reliability are priorities. It removes the need to rely on signal strength or battery life and supports larger installations where many control points are used together.
The WK EOS 6 is programmed using Rako’s Rasoft Pro software. This allows installers to configure each input, assign rooms or channels, and define how lighting scenes behave across the system.
Because the module is part of the wider Rako wired platform, it integrates smoothly with other control modules and lighting components. This makes it suitable for complex systems that may grow or change over time.
If you are planning a wired Rako lighting system or working on a new build project, the WK EOS 6 offers a reliable and flexible control solution. Add the module to your basket today or contact our team if you would like help confirming compatibility, finishes, or programming requirements.
The WK EOS 6 is a wired control module used to manage lighting scenes, levels, and channels within a Rako wired lighting system.
Yes. It is designed for first fix installation, making it well suited to new builds and full refurbishments where cabling can be planned in advance.
Yes. Each input is fully customisable and can be programmed to trigger different scenes, channels, or room controls using Rasoft Pro software.
The WK EOS 6 is part of the wired Rako system and connects via the Rakom CAT5 network. It is designed for wired installations rather than wireless operation.
It connects using a removable 8 way Krone punch down module, providing a secure and organised wired connection.
