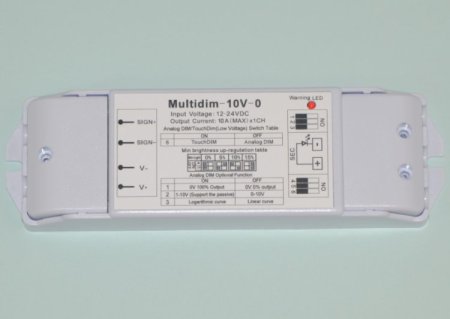

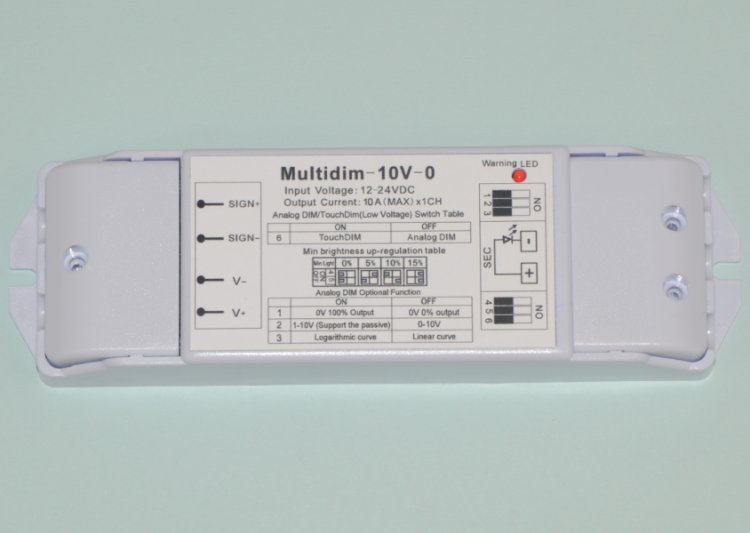

Multidim 0/1-10v and touch LED driver contoller

£

59.28£59.28

Qty Discounts Off Price
1-4
£59.28
5-9
£55.13
10-24
£53.35
25-49
£50.39
50+
£47.42
Add to Cart:

  • Units in Stock: 38
A very versatile device that can be used directly with 12 volt and 24 volt non-dimmable LED drivers to provide dimmable operation.

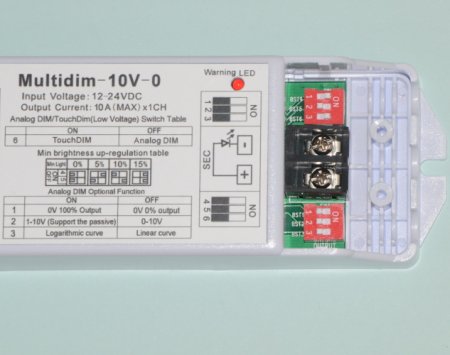

This devise has mutiple modes of operation which are set by the dip switches as follows:-
  • Touch Dim operation where you use in conjunction with a simple push or toggle switch for dimming. Short touches on the switch will turn the light off and on whilst longer touches will control the dimming from 1 to 100%.
  • Analogue dimming with 0-10v input with either a linear of logarithmic dimming curve.
  • Analogue dimming with 1-10v input with either a linear of logarithmic dimming curve.
  • These is also the capability to set the minimum brightness to between 0 and 15% which can be useful in cases, for example, where LEDs flicker at low light levels.
    The maximum current is 10 amps giving a maximum power for 12 volts of 120 watts and for 24 volts of 240 watts.
    The size of this devise id 167x52x24mm with a weight of 93 grams.
    The unit has short circuit, over current and high temperature protection.

Additional Images



This product was added to our catalog on Sunday 29 June, 2014.
